Piper Aircraft Baggage Door Lock Mod, p/n 763-922, Bracket p/n 28467-003

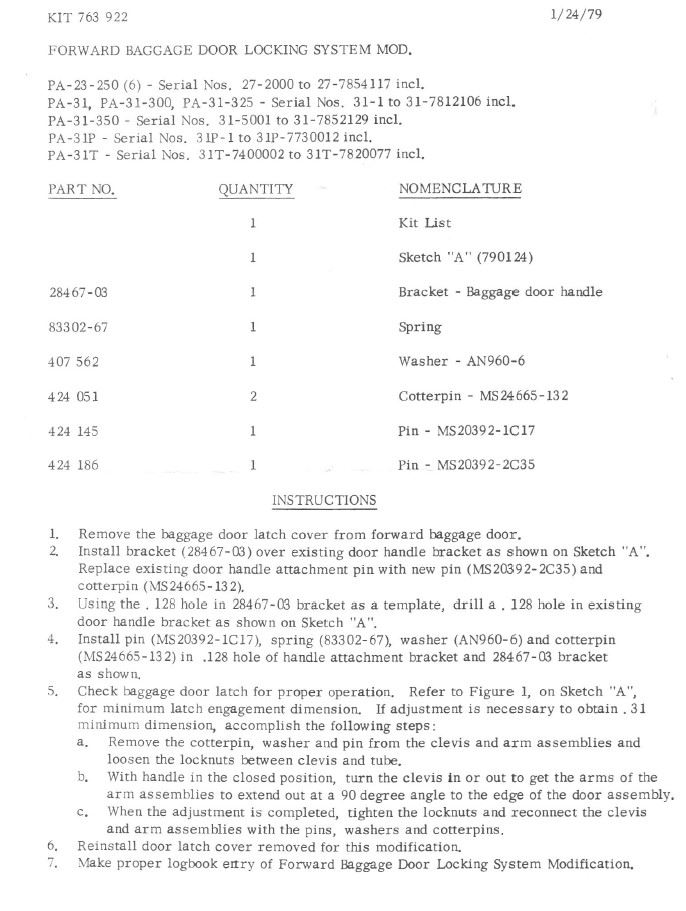

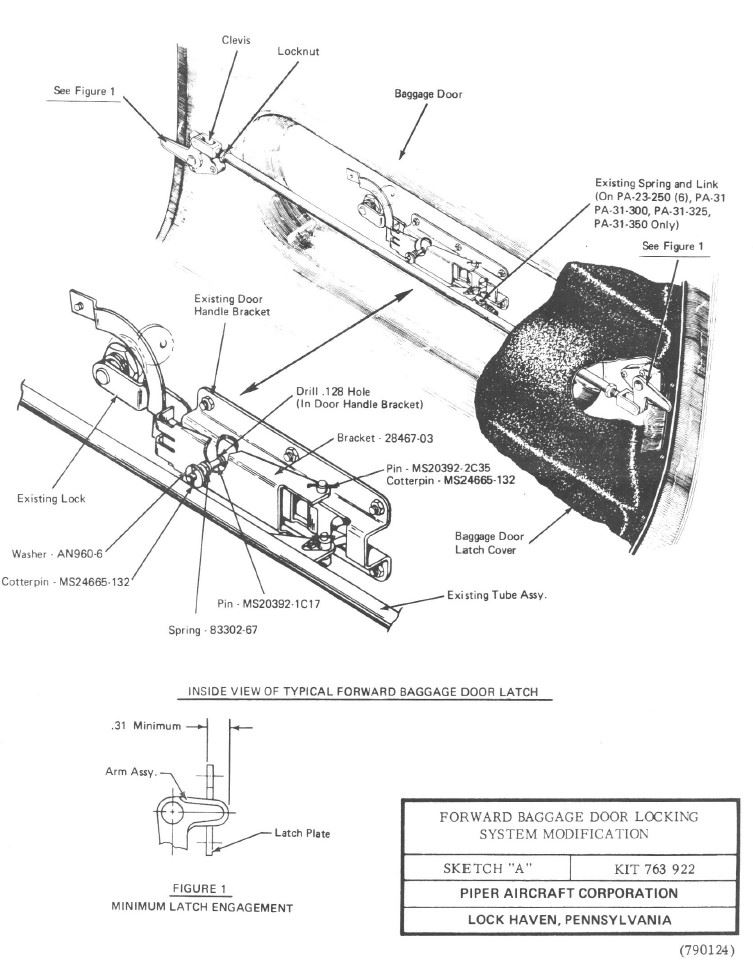

Baggage Door Lock Modification Kit

Part Number: 763-922

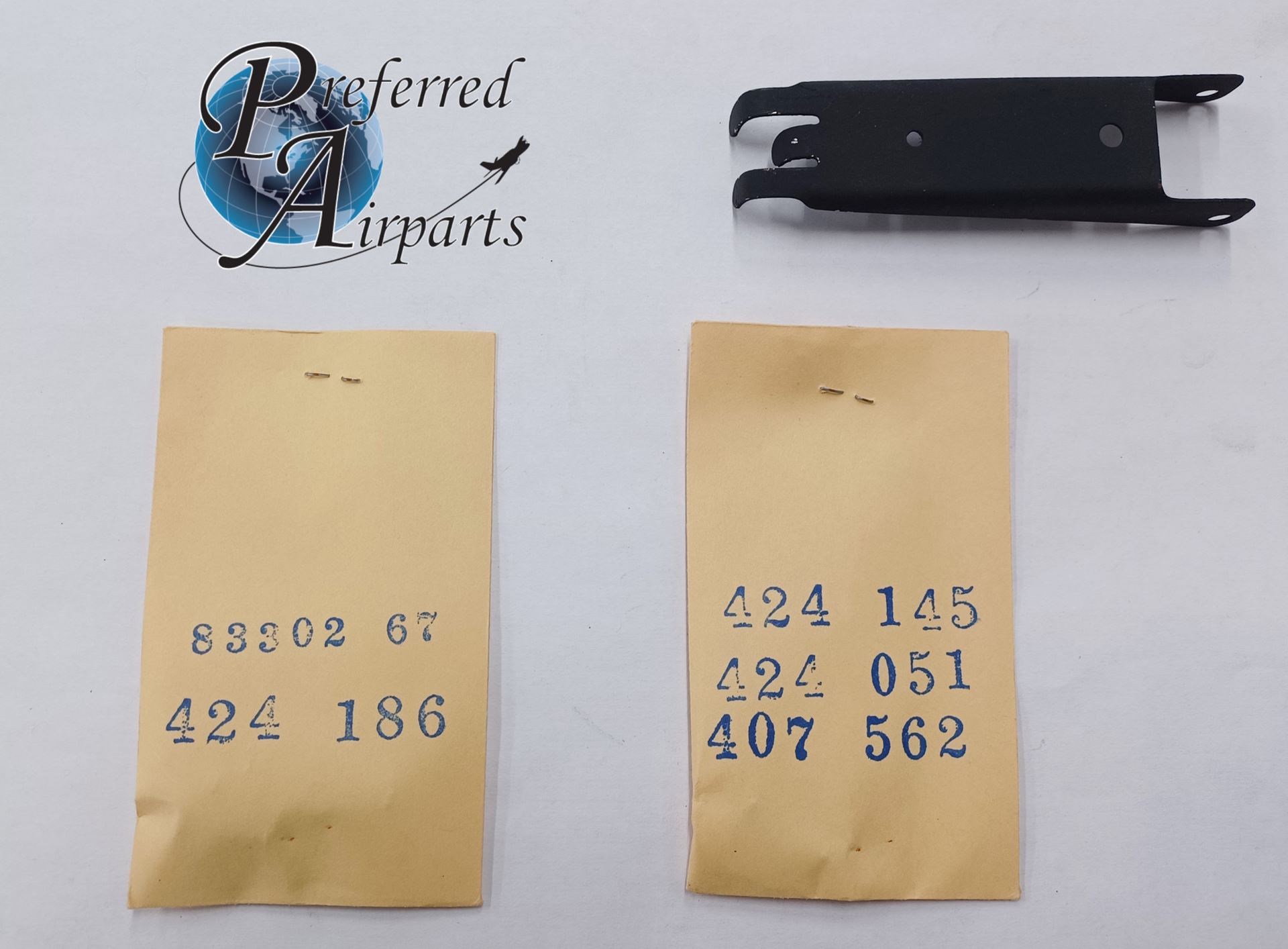

Includes the following:

28467-003 - bracket (1)

83302-067 - spring (1)

407-562 - washer (1) (AN960-6)

424-051 - cotter pin (2) (MS24665-132)

424-145 - flat head pin (1) (MS20392-1C17)

424-186 - flat head pin (1) (MS20392-2C35)

We believe this is applicable to some of the following aircraft:

PA-23-250, PA-31, PA-31-300, PA-31-325, PA-31-350, PA-31P, PA-31T

Please Note: If there are multiple quantities of the item(s) listed, the photos only represent the general condition of the item(s). The actual item(s) buyers will receive may slightly differ from the photos. If you have specific requirements, please message us before buying to verify we can meet your needs.
